The cast iron worked in its highest expression takes on a linear and minimalist shape. Its effential and rational style gives the kitchen a strong and unique personality.
Heatable area
91 m².

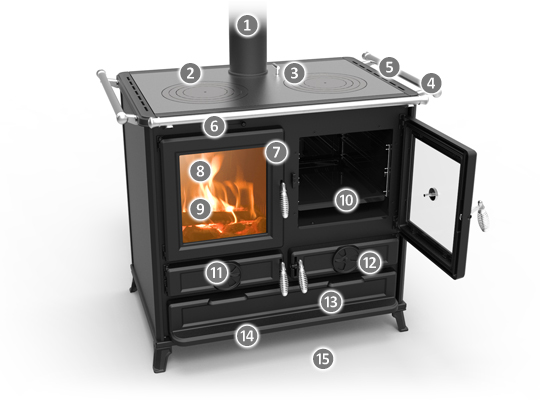

1 - Smoke outlet Ø 130mm
2 - Smoothed cast iron cooking plate together with cast iron rings
3 - Starter
4 - Lateral handrail (optional)
5 - Cast iron frame
6 - Secondary air modulation devices
7 - Cast iron firebox door
8 - Cast iron firebox (HxWxD - 296x305x453
9 - Loading opening (WxH - 284x273)
10 - Enamelled oven (HxWxD - 307x323x433)
11 - Primary air modulation devices
12 - Food warmer
13 - Tools compartment
14 - Cast iron ash collecting base
15 - The refined raised base facilities the cleaning operations
