Linear Insert

0 Emission Technology

Long fireplace with environmentally friendly features

Linear Insert

FLA4 / FLA4+

Linear fireplace with advanced BEV (Burning Ethanol Vapours) Technology

FLA4 is a fully automatic, linear fireplace insert based on Planika’s patented BEV (Burning Ethanol Vapours) Technology. Designed for built-in installations, it creates a real flame without the need for a chimney or hard connections. As the safest ethanol fireplace on the market, FLA4 offers a fully remote-controlled experience with smart features and an automatic refueling system. It is also available as FLA4+, offering the same advanced technology with an even larger fuel tank.
With full design flexibility and no installation limitations, FLA4 can be integrated into any space – from high-rise apartments in the city center to luxury yachts. The fireplace is fully customizable in length, shape and finish – including any RAL color – making it easy to tailor the look and configuration to the needs of each project. It comes with a 5-year warranty for long-term peace of mind.

DIFFERENT TYPES

FLA4

Insert height:

220 mm

Capacity:

3,1 L -14,8 L

Max burning time up to:

5-10 hrs

Flame height::

6 stages

Length:

590-2490 mm

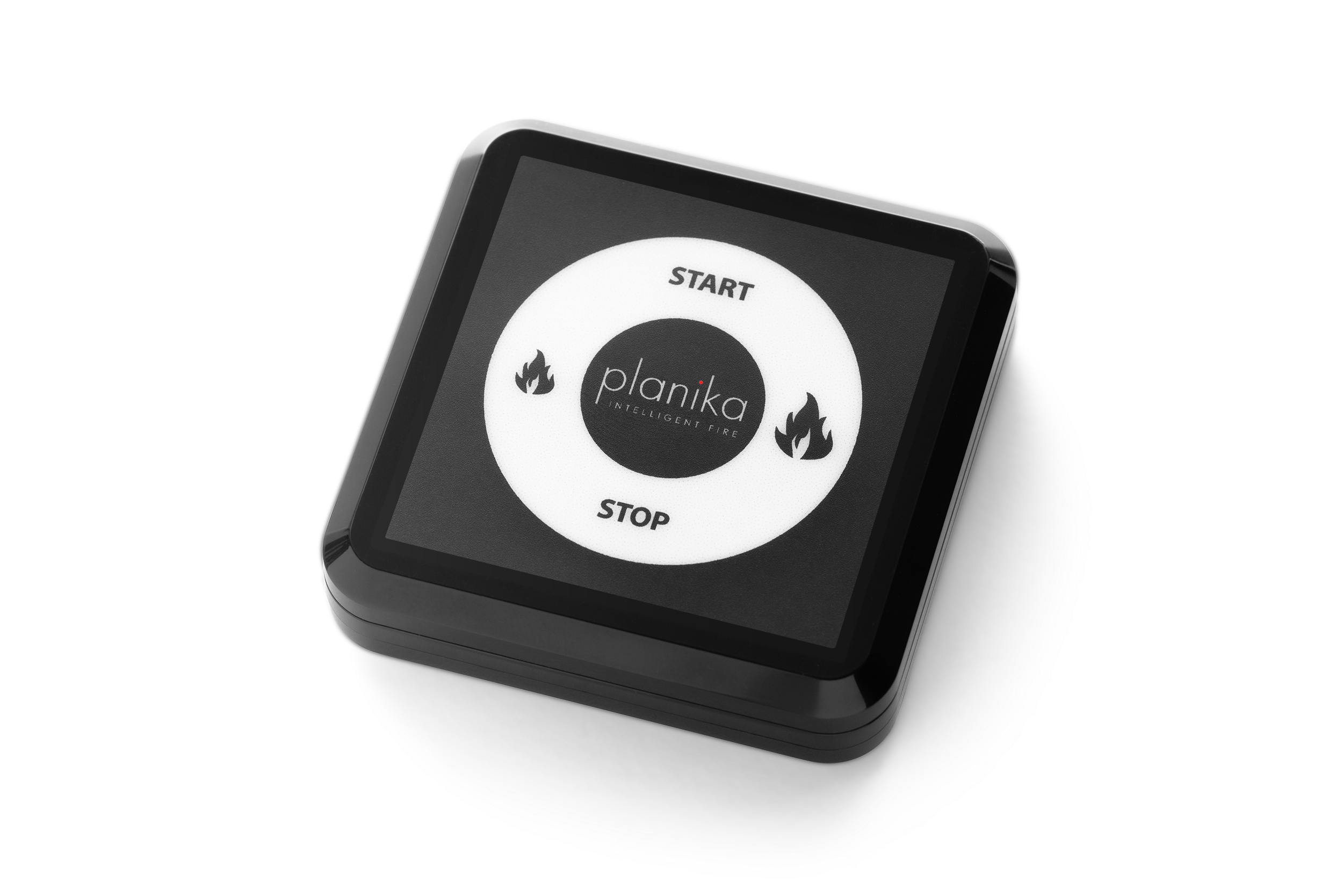

Remote control:

yes

SHS:

opsiyonel

FLA4+

Insert height:

305 mm

Capacity:

9,6 L -45,9 L

Max burning time up to:

16-31 hrs

Alev Boyu:

6 kademe

Length:

590-2490 mm

Remote control:

yes

SHS:

opsiyonel

CHOOSE YOUR FLA4/4+

Product

Dimensions

Burning time

FLA4 590 Burner

590 mm – 220 mm – 280 mm

5 h

FLA4 790 Burner

790 mm – 220 mm – 280 mm

8 h

FLA4+ 590 Burner

590 mm – 305 mm – 280 mm

16 h

FLA4+ 790 Burner

790 mm – 305 mm – 280 mm

25 h

FLA4 990 Burner

990 mm – 220 mm – 280 mm

8 h

FLA4+ 990 Burner

990 mm – 305 mm – 280 mm

26 h

FLA4 1190 Burner

1190 mm – 220 mm – 280 mm

9 h

FLA4+ 1190 Burner

1190 mm – 305 mm – 280 mm

30 h

FLA4 1490 Burner

1490 mm – 220 mm – 280 mm

9 h

FLA4+ 1490 Burner

1490 mm – 305 mm – 280 mm

30 h

FLA4 1990 Burner

1990 mm – 220 mm – 280 mm

10 h

FLA4+ 1990 Burner

1990 mm – 305 mm – 280 mm

31 h

FLA4 2490 Burner

2490 mm – 220 mm – 280 mm

10 h

FLA4+ 2490 Burner

2490 mm – 305 mm – 280 mm

31 h

TECHNICAL SPECIFICATIONS

Flue:

Not required

Fuel type:

Bioethanol 95 – 96,6%

Power supply:

230 V

Finish:

Black powder coating

Materials:

Steel, galvanized steel toughened glass

Application:

For indoor use only

LUXURY FIREPLACE IN VARIOUS SHAPES

FLA4 with BEV (Burning Ethanol Vapours) Technology is a zero-clearance fireplace that can be quickly installed in built-ins made of various materials, even flammable ones such as wood. This makes it possible to create a variety of real fire arrangements without design restrictions.

Automatic refilling system

Planika was the first to introduce the automatic refilling system for bioethanol fireplaces. An automatic pump allows you to refill the fireplace quickly and effortlessly. All it takes in connecting the pump with an integrated panel and putting the other pipe to the bottle with fuel and pushing the button. Once the tank is full, the pump switches off automatically. This protects the user and the fireplace from any accidental spillage or overfilling.

INNOVATIVE TOUCH PANEL CONTROL

One of the groundbreaking features of the FLA4 fireplace is its modern touch panel control, seamlessly concealed behind a flap for an elegant finish. This intuitive interface provides users with the capability to effortlessly adjust and monitor the fireplace’s settings. With a simple touch, you can gauge the fuel status, modify the flame’s intensity, and even set an automatic shut-off timer for added peace of mind. Concerned about the safety of your little ones? The child lock option ensures that curious fingers won’t accidentally ignite the fireplace. For those who desire a complete lockdown of the control panel, the device lock offers an added layer of security. These enhancements not only elevate user convenience but also prioritize safety, marrying innovation with practicality in the FLA4 design.

PLANIKA FLA4 APP

FLA4/4+ fireplace can be operated with a smartphone or any other mobile device. Custom-made application will allow you to:

✓ Control the flame
✓ See the fireplace messages
✓ Check the fuel level
✓ Set the work timer
✓ Activate Child Lock

NET ZERO FIREPLACE

Planika bioethanol fireplaces with BEV Technology provide a net zero combustion, meaning they produce only a minimal amounts of CO2 that can be compared to what one person exhales. Bioethanol which fuels Planika automatic fireplaces is made of corn, wheat, or potatoes. These plants absorb CO2, which contributes to its continuous circulation in nature. Thanks to this, these innovative fireplaces can be used in cities that regulate or prohibit emission of fossil fuels.

SAFETY FIRST

For over 20 years, Planika has been a pioneer in bioethanol fireplaces safety. Our solutions are protecting the customers around the world. Now you can get all of them in one FLA4 fireplace.

Temperature sensors

Multiple temperature sensors are installed in areas where heat is generated. Their sensitivity to temperature changes reaches 0.1 degrees and they react immediately to any undesirable changes.

Spillage sensor

Since we’re dealing with bioethanol, it’s always good to have a system of spillage detection on board. Deliberately tilted bottom of the device will ensure, that any hypothetical drop of fuel will fall right on the sensor.

Fuel level sensor

To ensure that the combustion process runs smoothly, the fireplace has been equipped with a fuel level sensor. If the level of the liquid fuel in the main tank is too low, the FLA4 switches off automatically and sends the information to the user. You can check the amount of the fuel any time in the dedicated FLA4 NET ZERO app.

Robust construction

At Planika, we make sure that our products meet the highest quality standards and pass mechanical, chemical and temperature resistance tests. Both the top plate of the burner and the fuel tank are made of stainless steel to provide high performance.

Seismic sensors

To meet the demands of our customers who live in areas of increased seismic activity, we’ve introduced a dedicated seismic sensor that will shut off the device if it detects vibrations. It will also react if the device is hit.

Fuel retrieval system

FLA4 is equipped with a system that redirects unused liquid fuel from the vapour generator and transports it back to the fuel tank when the device is not in use. The same situation occures when the fireplace detects any unusual situation and shuts down automatically.

OPTIONAL ACCESSORIES

SHS MODULE

GLASS SCREENS*

TRAY WITH LOGS or STONES

* Room divider, tunnel and island arrangements require higher glass panels alongside the burner to stabilize the flame from windblows.
